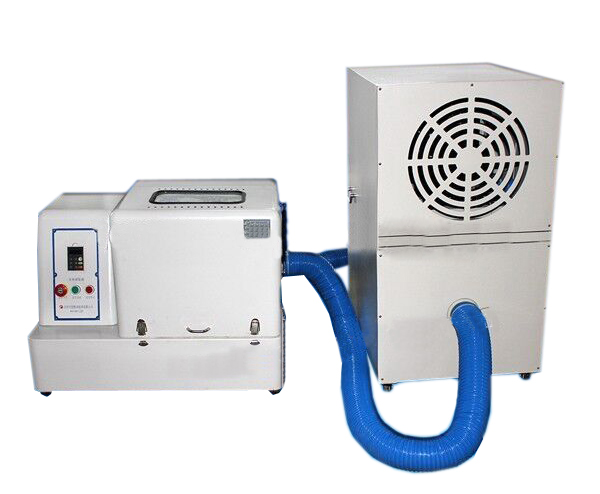

Cold-air planetary ball mill is composed of planetary ball mill and cold-air device. Cycling of cold air quickly
takes away the heat generated by grinding by means of air conditioning refrigeration principle, and temperature
inside the grinding space can be controlled at 2-10 °C according to temperature difference of working
environment. Cold-air planetary ball mill is mainly applied to ultrafine grinding under condition of low
temperature requested by materials.Compared with the artificial injection of liquid nitrogen cooling, cold-air
planetary ball mill is much easier and more convenient to be operated, it is also cost-saved, and low-energy
consumed. Such a cold-air device can be also applied to assembly other models like vertical ball mill,
horizontal ball mill, 360 degree ball mill and dual ball mill.
Type No. | Dimension(mm) | Max Rotation Speed(rpm) | Power(kw) |
BALLMILL-0.4 | 560*470*730 | 670 | 0.75 |
BALLMILL-1 | 560*470*730 | 670 | 0.75 |
BALLMILL-2 | 560*470*730 | 670 | 0.75 |
BALLMILL-4 | 560*470*730 | 670 | 0.75 |
BALLMILL-6 | 1050*730*810 | 670 | 0.75 |
BALLMILL-8 | 1050*570*700 | 580 | 1.5 |
BALLMILL-10 | 1050*570*700 | 580 | 1.5 |
BALLMILL-12 | 1050*570*700 | 580 | 1.5 |
BALLMILL-16 | 1260*640*780 | 480 | 3 |
BALLMILL-20 | 1500*700*850 | 430 | 4 |
BALLMILL-40 | 1500*770*900 | 430 | 5.5 |
BALLMILL-60 | 1530*900*1020 | 420 | 7.5 |
BALLMILL-80 | 1750*990*1130 | 420 | 11 |
