เตาเผาแก๊สบรรยากาศห้องปฏิบัติการ 1200C พร้อมห้องขนาดต่างๆ มากมาย

ผู้ติดต่อ: David Yuan

เบอร์ติดต่อ:18659217588

  • ยี่ห้อ :

    TMAX
  • แบบอย่าง:

    TMAX-1200atmosphere
  • วิธีการชำระเงิน :

    L/C, Western Union, Paypal
  • ใบรับรอง :

    CE, ROHS
  • เวลาการจัดส่งสินค้า :

    5 วัน
  • ข้อมูลผลิตภัณฑ์

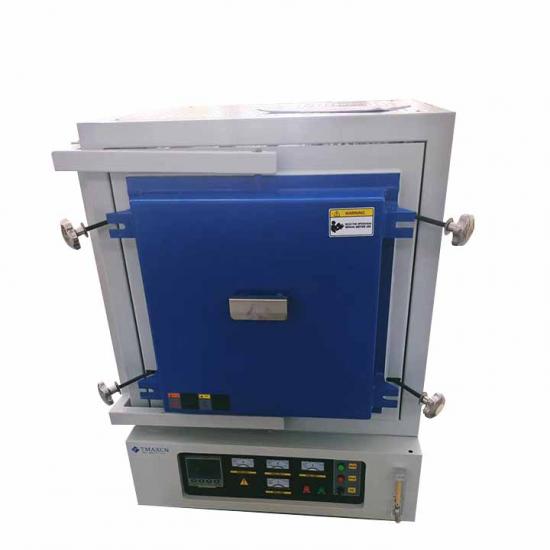

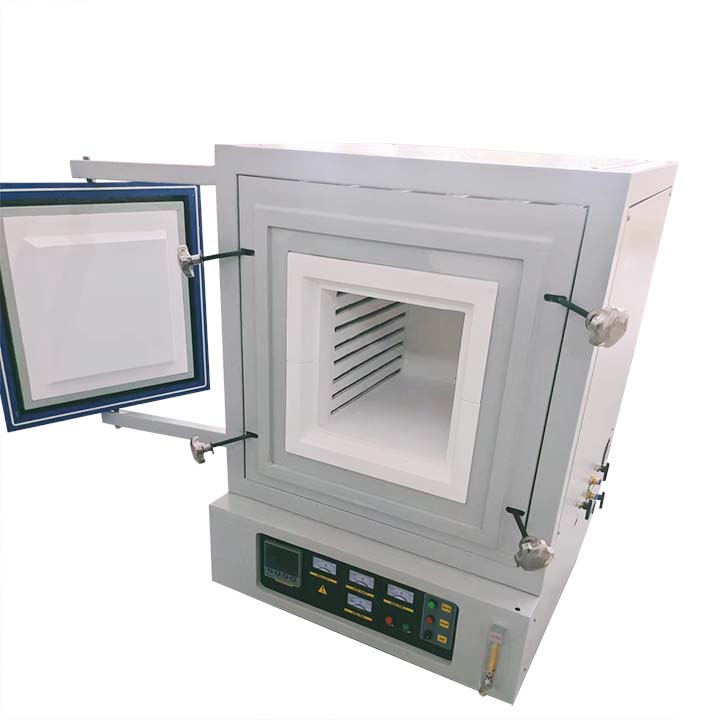

1200C Laboratory Atmosphere Gas Muffle Furnace with Many Chamber Sizes




Detailed technical parameters

Model

1200-I

1200-II

1200-III

1200-IV

1200-V

1200-VI

1200-VII

Power

2.5  KW

4KW

5KW

9KW

15KW

18KW

32KW

Chamber size(mm)

300X200X120

300X200X200

300X250X250

400X300X300

 500X400X400

500X500X500

800X600X600

Dimensions

(mm)

564X615X905

 564X615X905

594X625X975

634X725X1025

764X877X1185

940X970X1300

1110X1050X1400

Supply voltage

220V

380V

Phase

single phase

three phase

Heating element

                                     Resistance wire

Control mode

UAV program temperature control instrument

1, 30-stage program temperature control intelligent PID adjustment.

2. With over-temperature protection, the electric furnace heating  circuit is automatically cut off when the temperature is over-temperature or  broken, (when the electric furnace temperature exceeds 1200 degrees or the  thermocouple is blown, the AC relay on the main circuit will be automatically  disconnected, the main circuit is broken. On, the ON light on the panel is  off, the OFF light is on, and the limited protection electric furnace).

3, with 485 communication interface (standard when purchasing software)

4, with power-off protection function, that is, when the power is  turned on after the power is turned off, the program does not start from the  starting temperature, but the furnace temperature rises from the time of  power failure.

5, the meter has the function of temperature  self-tuning


(replacement of imported instruments, additional charge is  required, optional)



FP93 temperature controller          European instrument                      Touch screen instrument

Control precision

                                                  +/- 1℃

Trigger

                                        Phase-shifted  trigger

Electric appliance

                                            Zhejiang chint

Silicon controlled

                                   106/16E SEMIKRON

Maximum temperature

                                          1200℃

Rated temperature

                                           1100℃

Heating rate

             ≤20℃/ Min (it can be modified as required)

ecommended rate of temperature rise

                                      ≤15℃/ Min

Thermocouple Type

                                             K Type

Certification

                                                CE

Peripheral surface temperature

                                              ≤45℃

Open cover protection system

The furnace is equipped with a travel switch, when the  cover is opened, the relay will automatically cut off the main power supply,  effectively ensuring the safety of users



 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
